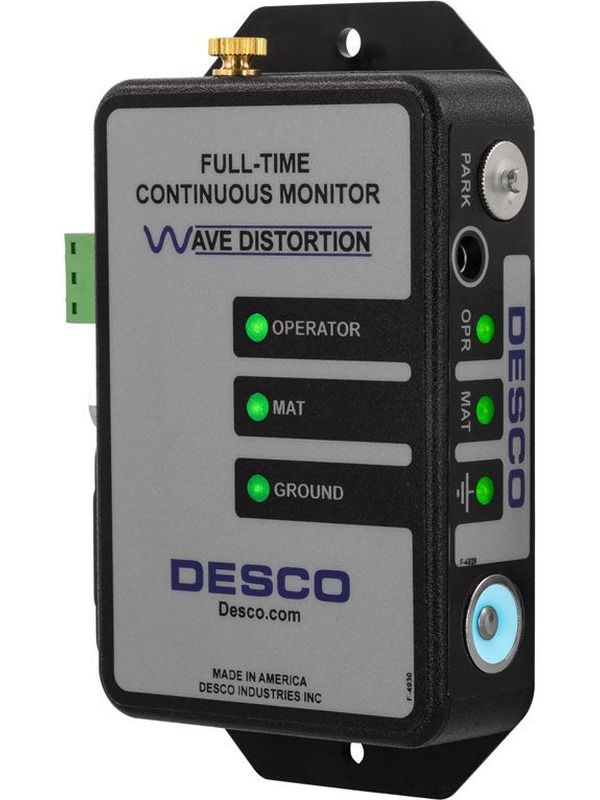

Desco Full-Time Continuous Monitor
FeaturesSingle Workstation Continuous Monitor: Continuously monitors the path-to-ground integrity of one operator, one ESD worksurface, and the electrical ground used to by the monitor.
Monitored Ground Terminal: Provides a verified ground point for mats, carts, tools, and other items. Connect with the 09842 Multi-Ground Hub.
Light Tower Jack: Connects with 19332 Light Tower Accessory
Auxiliary Jack: Connects with 19333 Power Relay Accessory
Wave Distortion Technology: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap's path-to-ground* and the presence of its 1 megohm safety resistor
AC Outlet Monitor Circuit: Verifies the wiring of an AC outlet and continuously monitors its path-to-ground integrity; fulfills the ANSI/ESD S6.1 section 6.3.1 requirement
Park Delay Timer and Park Snap: Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
Embedded Relay Terminal: Activates when a failure is reported by the monitor. Integrates with electronic locks, lights, and buzzers.
Mat Monitor Switch: Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
Audible Alarm Adjustment: Sets the audible alarm volume from loud to louder
Enclosure with Mounting Tabs: Installs in workbench and equipment environments
Single-Wire Impedance Design: Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2 Volt Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
