Desco Mini Monitor with Universal Power Adapter

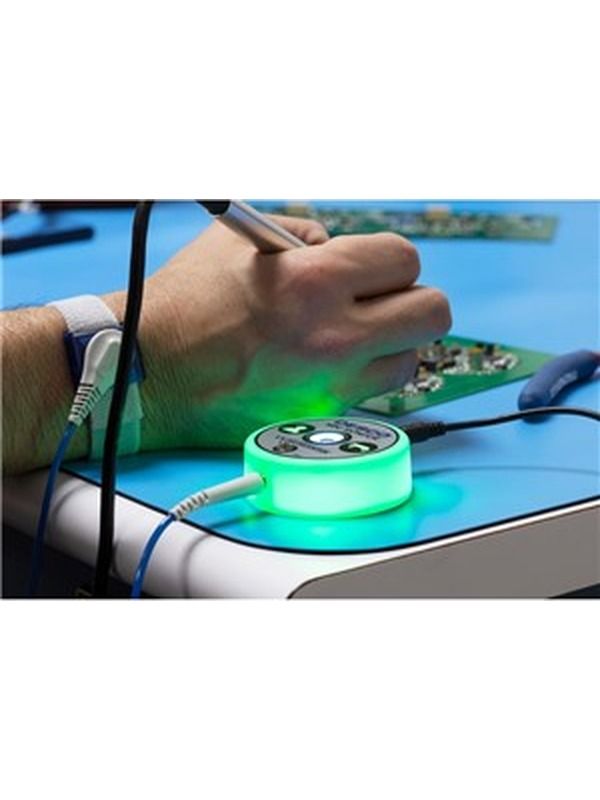

OverviewSingle Workstation Continuous Monitor: Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
NEW Illuminated Enclosure: Makes the status of the operator and worksurface highly visible to the operator and supervisor
IMPROVED Continuous Visual and Audible Alarms: Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode
NEW Park Delay Timer and ParkSnap: Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
NEW Mat Monitor Switch: Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
NEW Audible Alarm Adjustment: Sets the audible alarm volume from loud to louder
Wave Distortion Technology: Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap's path-to-ground and the presence of its 1 megohm safety resistor
Threaded Worksurface Grounding and Mounting: Grounds and monitors the worksurface with no additional wire
Single-Wire Impedance Design: Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2 Volt Operator Test Voltage: Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
