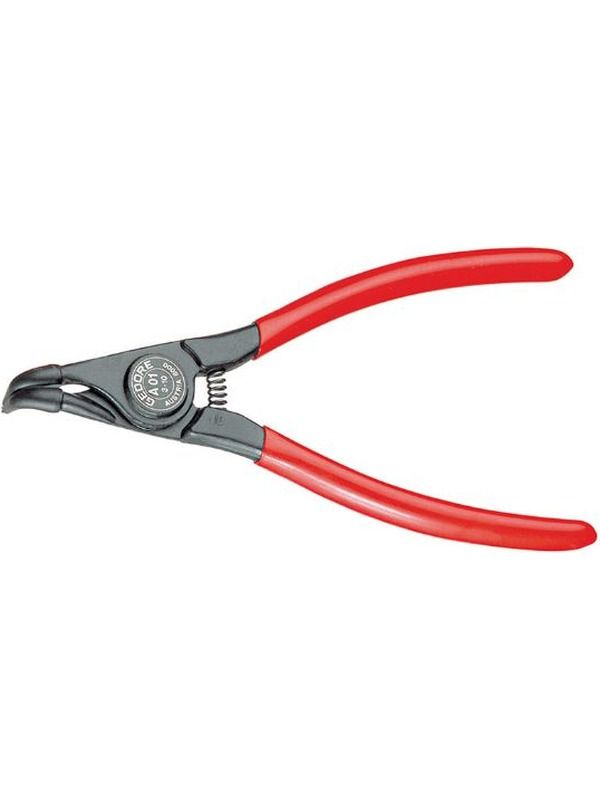

Gedore 8000-A 21 Circlip Pliers 6702430B

Gedore 8000-A 21 Circlip Pliers

• For retaining rings as per DIN 471, DIN 983

• Acc. to DIN 5254 Form B

• 90 angled jaws

• With opening spring

• With clamping protection

• Forged GEDORE chrome-vanadium special hardened and tempered steel

• Precision machined, oil hardened and annealed

• Black, with blue dipped handles

Dimensions and weights

• Total width [mm]: 117 mm

• Total height [mm]: 22 mm

• Total length [mm]: 170 mm

• Nominal width [mm]: 117 mm

• Nominal height [mm]: 22 mm

• Nominal length [mm]: 170 mm

• Net weight [kg]: 0,182 kg

Technical characteristics

• Design non-sparking: No

• Standard: DIN 5234 - Form B

• Joint types: applied joint

• Handle design: dip-insulated

• Hardening process: oil-hardened and tempered

• Length of head: 43 mm

• Material: Chrome-vanadium steel

• Surface: Black varnished

• Opening spring present: Yes

• Compliance: compliant

• Tip diameter: 1,8 mm

• Shaft diameter [inch]: 3/4-2.3/8

• Shaft diameter [mm]: 19-60
