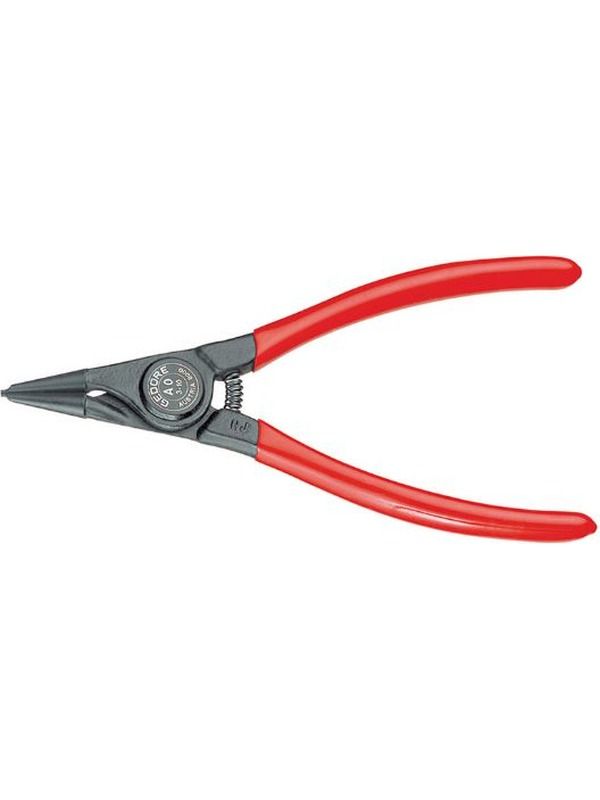

Gedore 8000 A 3 Circlip Pliers 6701620

Gedore 8000 A 3 Circlip Pliers

• For retaining rings according to DIN 471, DIN 983

• Design according to DIN 5254 Form A

• Straight cheeks

• With opening spring

• With clamp protection

• Forged GEDORE chrome-vanadium special tempering steel

• Precisely machined, oil hardened and tempered

• Black, with blue dipped handle covers

Technical Characteristics

• Spark-free version: No

• Standard: DIN 5254 - Form A

• Joint types: laid-on joint

• Handle design: dipped insulated

• Hardening process: oil hardened and tempered

• Head length: 69 mm

• Material: Chrome-vanadium tempered steel

• Surface: black lacquered

• Compliance: compliant

• Tip diameter: 2.3 mm

• Shaft diameter [inch]: 1.5/8-4

• Shaft diameter [mm]: 40-100

Dimensions & Weights

• Total width [mm]: 128 mm

• Total height [mm]: 15 mm

• Total length [mm]: 230 mm

• Nominal width [mm]: 128 mm

• Nominal height [mm]: 15 mm

• Nominal length [mm]: 230 mm

• Net weight [kg]: 0.31 kg
