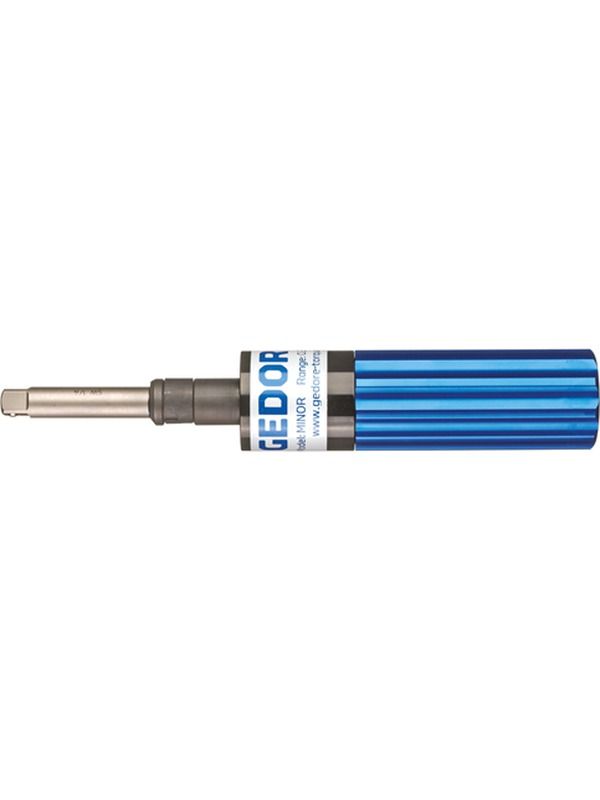

Gedore Torque Screwdriver 1/4in 4-22 cNm TLS 0022 FH Blue 1471473

Gedore Torque Screwdriver 1/4in 4-22 cNm TLS 0022 FH Blue

Mission:

• Controlled screw tightening in the range of 4 - 22 cNm
• Series assembly with constant value
• Electronics industry, precision mechanics and industrial manufacturing

Execution:

• Fixed torque screwdriver - without scale
• With 1/4" hexagon socket for operating 1/4" bits according to DIN 3126 - C 6.3
• Trigger accuracy: +/- 6% tolerance of the set value
• Design according to DIN EN ISO 6789 Type II Class F
• Precision recirculating ball coupling for controlled clockwise and anti-clockwise tightening, special versions available
• Precision mechanism glides noticeably when the set value is reached
• Automatic return to the starting position
• Lightweight construction thanks to anodized aluminum handles
• The setting can be made in the factory or by hand on suitable test equipment
• If factory setting is required, please specify Nm value when ordering (price on request)
• Blue Handle

Scope of Delivery:

• Torque screwdriver

• Model No. TLS 1360 FH with additional cross handle for easier work

• Test certificate according to DIN EN ISO 6789-2:2017

• Delivery in sturdy cardboard box

• Drive socket, hexagon [metric]: 6.3

• Drive socket, hexagon [inch]: 1/4"

• Drive type/drive: bit holder

• Tightening direction: Left and right

• Release mechanism: slip clutch

• Torque (max.) [cNm]: 22 cNm

• Torque (min.) [cNm]: 4 cNm

• Application: Assembly Manufacturing Quality control Serial assembly Maintenance and repair

• EPA/ESD version: No

• Fixed setting: Yes

• Precision +/-: +/- 6%

• Test certificate: DIN EN ISO 6789-2:2017

• Cross handle available: No

• Compliance: compliant
