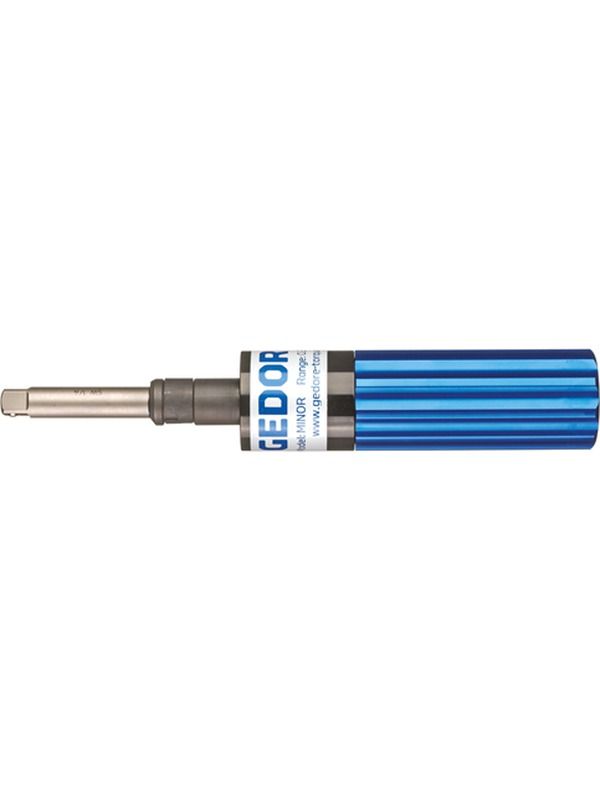

Gedore Torque Screwdriver FS 1/4in 2-135cNm MIN FH Blue 1471465
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Gedore Torque Screwdriver FS 1/4in 2-135cNm MIN FH Blue
OverviewMission:
Controlled screw tightening in the range of 14 - 135 cNm
Series assembly with constant value
Electronics industry, precision mechanics and industrial manufacturing
Execution:
Fixed torque screwdriver - without scale
With 1/4" hexagon socket for operating 1/4" bits according to DIN 3126 - C 6.3
Trigger accuracy: +/- 6% tolerance of the set value
Design according to DIN EN ISO 6789 Type II Class F
Precision recirculating ball coupling for controlled clockwise and anti-clockwise tightening, special versions available
Precision mechanism glides noticeably when the set value is reached
Automatic return to the starting position
Lightweight construction thanks to anodized aluminum handles
The setting can be made in the factory or by hand on suitable test equipment
If factory setting is required, please specify Nm value when ordering (price on request)
Blue Handle
Scope of Delivery:
Torque screwdriver
Model No. TLS 1360 FH with additional cross handle for easier work
Test certificate according to DIN EN ISO 6789-2:2017
Delivery in sturdy cardboard box
Drive socket, hexagon [metric]: 6.3 mm
Drive socket, hexagon [inch]: 1/4"
Drive type/drive: bit holder
Tightening direction: Left and right
Release mechanism: slip clutch
Torque (max.) [cNm]: 135 cNm
Torque (min.) [cNm]: 14 cNm
Application: Assembly Manufacturing Quality control Serial assembly Maintenance and repair
EPA/ESD version: No
Fixed setting: Yes
Precision +/-: +/- 6%
Test certificate: DIN EN ISO 6789-2:2017
Cross handle available: No
Compliance: compliant
