JBC BIRON 500 Battery-Powered Soldering Station BIS-5A
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

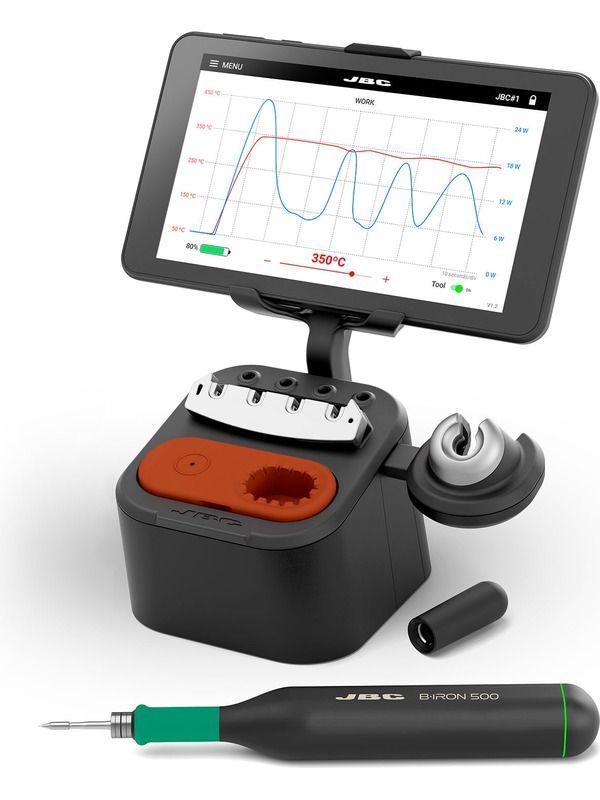

JBC BIRON 500 Battery-Powered Soldering Station
OverviewB IRON 500 is specially designed for electronic production and intensive works.
It performs up to 500 medium-sized SMD soldering joints per charge.
Included:
B 500 Handle, which is fully compatible with C210 Cartridge Range. It also has a power safe mode that can be activated by putting on the cap.
BCB Charging-Base for charging the tool automatically when placed in Tool Holder.
It also features Quick Cartridge Exchanger, enabling a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.
PDS Portable Display 7" with B IRON app to configure and control the system.
Instruction Manual
B 500 Handle for B IRON
C210001 Conical Cartridge 0.3
BCB Charging-Base for B IRON
PDS Portable Display 7" for B IRON
B1596 Safety Cap for B IRON Handles
Additional C210 cartridges AVAILABLE HERE
SpecificationsCHARGING BASE
Input voltage: 100 V - 240 V 50/60 Hz
Power: 40 W
Tool output: 12 V / 1000 mA
USB output: 5 V / 1000 mA
TOOLOutput peak power: 24 W
Battery: Li-Ion 7.4V / 750 mAh
Charge time: 60 minutes
Selectable temperature: 100 to 450C / 210 to 840F
Idle temp. stability (still air): +-1.5 C / +-3 F
Temperature accuracy: +- 3% (Using reference cartridge)
Connections: Bluetooth Low Energy (BLE)
Ambient Operating Temp: 10 - 50 C / 50 - 122 F
Tool Weight: 70 g / 0.154 lb
Weight and dimensions
B IRON System: 233 x 202 x 211 mm / 1.98 kg. / 9.17 x 7.95 x 8.31 in / 4.37 lb
Package: 265 x 223 x 160 mm / 2.55 kg / 10.43 x 8.78 x 6.30 in / 5.63 lb
