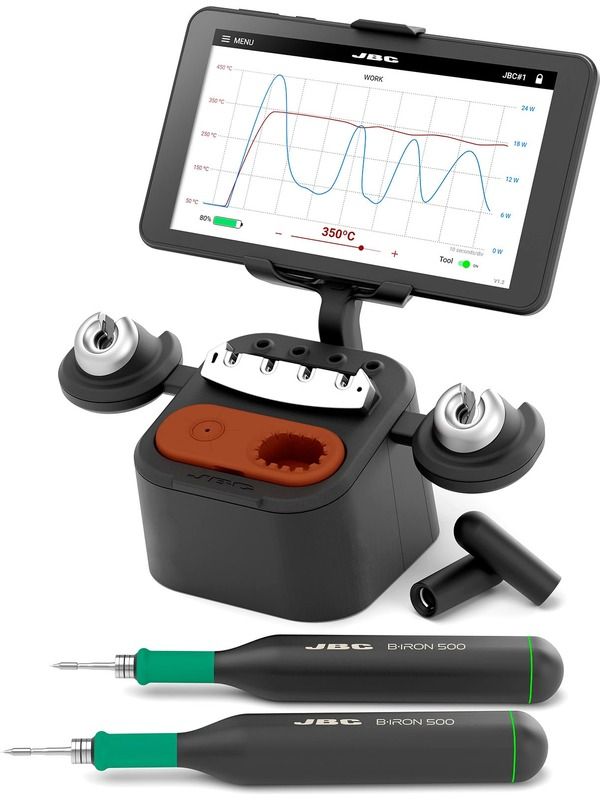

JBC BIRON Dual 500 Dual Battery-Powered Soldering Station BISS-5A

JBC BIRON Dual 500 Dual Battery-Powered Soldering Station

B IRON DUAL 500 is specially designed for continuous work in mass production.

It performs up to 500 SMD soldering joints per charge.

This station converts into a dual-tool station by adding an extra tool. Both tools can be controlled in real time.

Inclusions:

• B 500 Handle (x2), which is fully compatible with C210 Cartridge Range. It also has a power safe mode that can be activated by putting on the cap.

• Charging-Base for charging booth tools automatically when placed in Tool Holder.

• It also features Quick Cartridge Exchanger, enabling a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.

• PDS Portable Display 7" with B IRON app to configure and control the system.

• Instruction Manual

• 2 x B 500 Handle for B IRON

• 2 x C210001 Conical Cartridge 0.3

• 1 x PDS Portable Display 7" for B IRON

• 2 x B1596 Safety Cap for B IRON Handles

• Input voltage: 100 V - 240 V 50/60 Hz

• Power: 40 W

• Tool output: 12 V / 1000 mA

• USB output: 5 V / 1000 mA

• Output peak power: 24 W

• Battery: Li-Ion 7.4V / 750 mAh

• Charge time: 60 minutes

• Selectable temperature: 100 to 450C / 210 to 840F

• Idle temp. stability (still air): +-1.5 C / +-3 F

• Temperature accuracy: +- 3% (Using reference cartridge)

• Connections: Bluetooth Low Energy (BLE)

• Ambient Operating Temp: 10 - 50 C / 50 - 122 F

• Tool Weight: 75 g / 0.165 lb

WEIGHTS & DIMENSIONS

• 2.126 kg (4.69 lb)

• 2.738 kg (6.04 lb)

• 265 x 223 x 160mm
