Kukko 2-Arm Cobra Separator Puller w/ Adjustable Clamping Depth 210-2

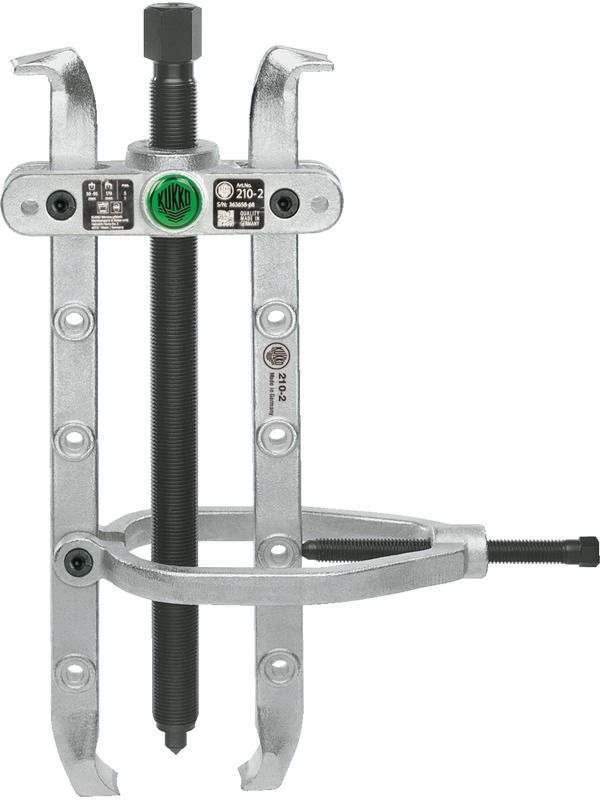

Kukko 2-Arm Cobra Separator Puller w/ Adjustable Clamping Depth

The 2-armed "Cobra" separating puller with adjustable clamping depth and lateral clamping clamp is used for removing flat bearings, gear rims and discs in all standard sizes for trade, workshop and industry. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. The puller legs can be rotated through 180 and can be used on both sides. One side has normal puller claws, the other side has special separating claws. Thanks to the multiple holes in the puller legs, different clamping depths can be set for flexible working. The lateral clamping clamp increases the contact pressure of the puller legs many times over and thus prevents the puller from slipping.

For pulling off flat bearings, gear rims & discs

• Adjustable and 180 rotatable puller legs for individual adjustment of the clamping depth thanks to multiple holes in the puller legs

• Pulling legs with different contact surfaces for flexible working

• Lateral clamp ensures that the puller legs are pressed particularly firmly against the part to be pulled off

• 2-fold application of force from above and sideways guarantees 100% secure grip

• Anti-slip device on the spindle head for safe working with spanners

• Spindle run-out to protect the thread

• Apply the puller leg to the part to be removed from the outside

• Push the claws or separating claws under the part

• Tighten the side clamp to support stability

• Pull the spindle manually to fix it

• Move the hexagon on the spindle head with a ratchet or a combination spanner until the component is released

Data Sheet
