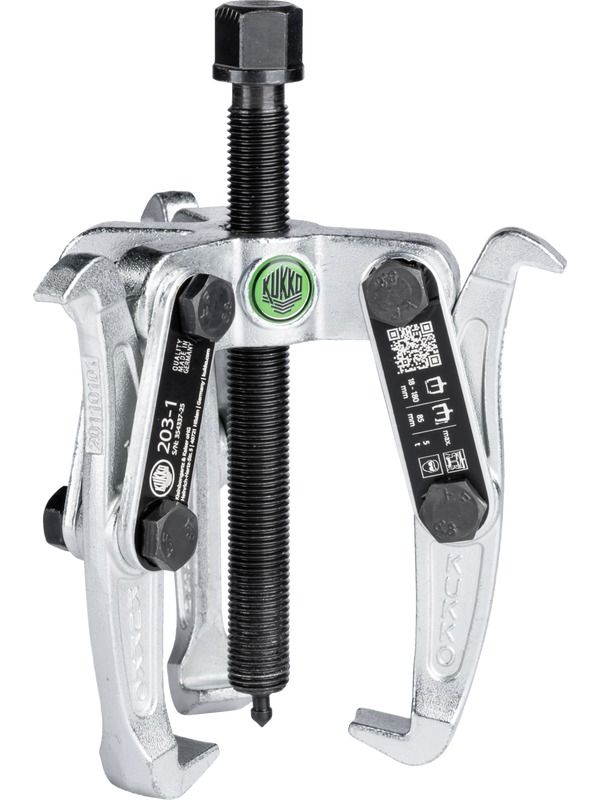

Kukko 3-Armed Puller w/ Oscillating & Reversible Puller Legs
OverviewThe 3-arm puller with combination crosshead has oscillating and reversible puller legs and is used for the centric removal of bearings, gears and discs in all standard sizes for trade, workshop and industry. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. The swivelling puller legs with adjustable clamping width can be used on both sides. The claw shape differs depending on the version. Thanks to the Combination crossbeam, the puller can be used with both 2 and 3-jaw pullers. The 3-arm design guarantees even load distribution and therefore a particularly secure grip on the part to be pulled.
ApplicationFor centric extraction of bearings, gear wheels and discs
Thanks to the combination traverse, the puller can be used for 2- jaw puller with adjustable reach and 3-jaw puller with adjustable reach
Adjustable puller legs that can be rotated through 180 to customise the clamping depth
Oscillating pulling hooks offer a wide range of adjustment options
Pulling legs with diverse claw shapes for more versatile working
Claw end with slot provides grip for screw for additional support when pulling off
Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)
3-jaw design ensures even force distribution and enables greater pulling power
Anti-slip guard on the spindle head for safe working with wrench
Spindle riser protects the threading
Total width: 197mm
Total depth: 197mm
Total height: 155mm
Net weight: 1.26kg
Width across flats: 17mm
Span outside pull-off (min): 0mm
Span outside pull-off (max): 180mm
Clamping depth outside pull off: 85mm
Hook root thickness at the tip (claw thickness): 2mm
Hook base width (claw width): 15mm
Hook base depth usable (claw depth usable): 9mm
Total hook root depth (total claw depth): 22.5mm
Total claw thickness (claw distance to base surface): 7mm
Span inside pull-out (min): 60mm
Max torque (Nm): 75Nm
Material: Tool steel
Number of clamping depth adjustment: 1
Scale division: No
