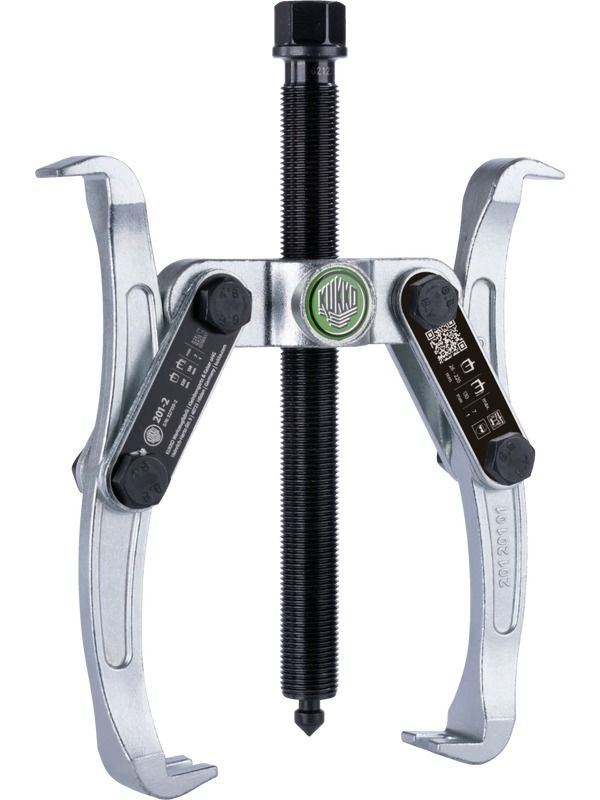

Kukko 2-Arm Flap Puller w/ Adjustable Reach Oscillating/Reversible
OverviewThe 2-jaw puller with adjustable reach with oscillating and reversible puller legs is used for the centric removal of bearings, gears and discs in all common sizes for trade, workshop and industry. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. The oscillating puller legs with adjustable clamping depth can be used on both sides. The claw shape differs depending on the version.
ApplicationFor centric extraction of bearings, gear wheels and discs
Adjustable puller legs that can be rotated through 180 to customise the clamping depth
Oscillating pulling hooks offer a wide range of adjustment options
Pulling legs with diverse claw shapes for more versatile working
Claw end with slot provides grip for screw for additional support when pulling off
Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)
Anti-slip guard on the spindle head for safe working with wrench
Spindle riser protects the threading
Total width: 250mm
Total depth: 42mm
Total height: 245mm
Net weight: 2.44kg
Width across flats: 22mm
Span outside pull-off (min): 0mm
Span outside pull-off (max): 220mm
Clamping depth outside pull-off: 130mm
Hook root thickness at the tip (claw thickness): 3mm
Hook base width (claw width): 26mm
Hook base depth usable (claw depth usable): 18mm
Total hook root depth (total claw depth): 33mm
Total claw thickness (claw distance to base surface): 7mm
Span inside pull-off (min): 80mm
Max torque (Nm): 150Nm
Foot opening of the puller leg: 8.5mm
Number of clamping depth adjustment: 1
Scale division: No
