Kukko 3-Arm Combination Puller with Locking Mechanism 486-1

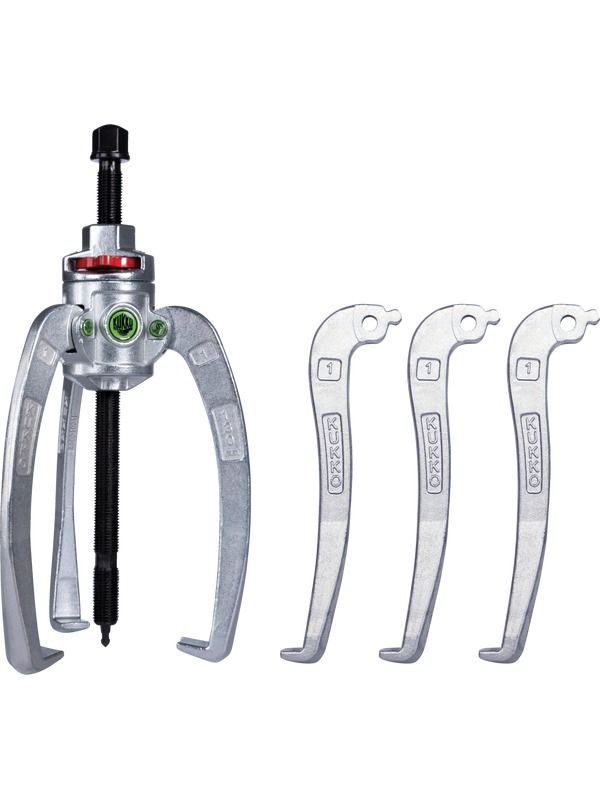

Kukko 3-Arm Combination Puller with Locking Mechanism

The 3-arm combination puller with locking mechanism and combination crosshead is used to pull bearings, gears, discs and similar items in trade, industry and workshops. Thanks to the use of the 2- and 3-jaw crossbeam and the two pairs of puller hook sets included, the combi puller is universally suitable for external and internal removal. The 486 series is characterised as particularly powerful and practical thanks to the option of using both two and three Pulling hooks, as well as an additional slide hammer for internal extraction.

• For pulling off bearings, gear wheels, discs a

• By simply exchanging the puller legs, the combi puller is ideal for both external removal and internal extraction

• The self-locking retaining pins ensure quick and easy replacement of the Pulling hooks without having to relieve the compression spring first

• A 2-sided spindle tip ensures optimum adaptation of the spindle to the shaft (Switch Technology)

• Thanks to the innovative double wave spring, a significantly more compact and lighter, but still just as strong power construction is guaranteed (Wavespring Technology)

• Automatic self-tensioning and self-centring of the Pulling hooks (Autogrip Technology)

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

• Total width: 210mm

• Total depth: 210mm

• Total height: 265mm

• Net weight: 2.41kg

• Width across flats: 17mm

• Span outside pull-off (min): 0mm

• Span outside pull-off (max): 160mm

• Clamping depth outside pull-off: 130mm

• Hook base width (claw width): 17mm

• Hook base depth usable (claw depth usable): 10mm

• Total hook root depth (total claw depth): 23mm

• Total claw thickness (claw distance to base surface): 6mm

• Span inside pull-out (min): 55mm

• Span inside pull-out (max): 180mm

• Max torque (Nm): 60Nm

• Case material: Tool steel

• Scale division: No
