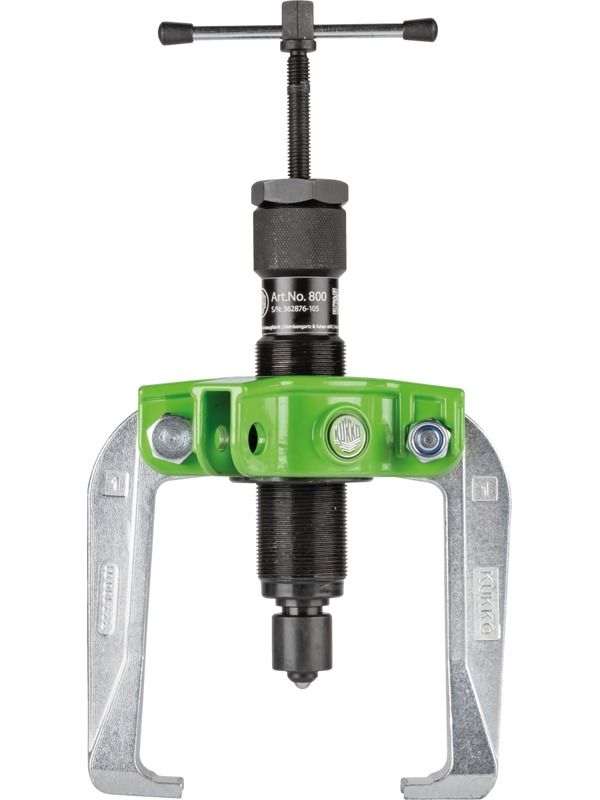

Kukko Handy 2-Arm Puller Power-Transmitting Self-Centring Puller Legs
OverviewThe handy, 2-arm puller with power-transmitting, self-centring puller legs and grease-hydraulic spindle is used for pulling particularly tight bearings, gears and discs in all standard sizes for trade, workshop and industry. The puller legs are automatically centred when the spindle is tightened. The grease-hydraulic spindle of the 800 series is the motor of the puller and achieves a pulling force of 10 tonnes. As a true powerhouse, the spindle impresses with its compact design, ease of use and transportability. The spindle is ribbed on the sides to provide a particularly good grip for the fingers when repositioning.
ApplicationFor pulling off particularly tight bearings, gearwheels and pulleys
Self-centring of the legs by manually tightening the spindle (Autogrip Technology)
Spindle extensions enable quick customisation to a wide range of requirements
Hydraulic spindle guarantees easy and controlled removal of particularly tight parts with little effort
Slim design of the legs makes it possible to reach places that are difficult to access
No further tools are required for the pulling process
Total width: 156mm
Total depth: 67mm
Total height: 260mm
Net weight: 3.39kg
Span outside pull-off (min): 26mm
Span outside pull-off (max): 100mm
Clamping depth outside pull-off: 100mm
Hook root thickness at the tip (claw thickness): 6.5mm
Hook base width (claw width): 25.5mm
Hook base depth usable (claw depth usable): 40mm
Total hook root depth (total claw depth): 40mm
Total claw thickness (claw distance to base surface): 6.5mm
Max torque (Nm): 40Nm
Material: Tool steel
Scale division: No
