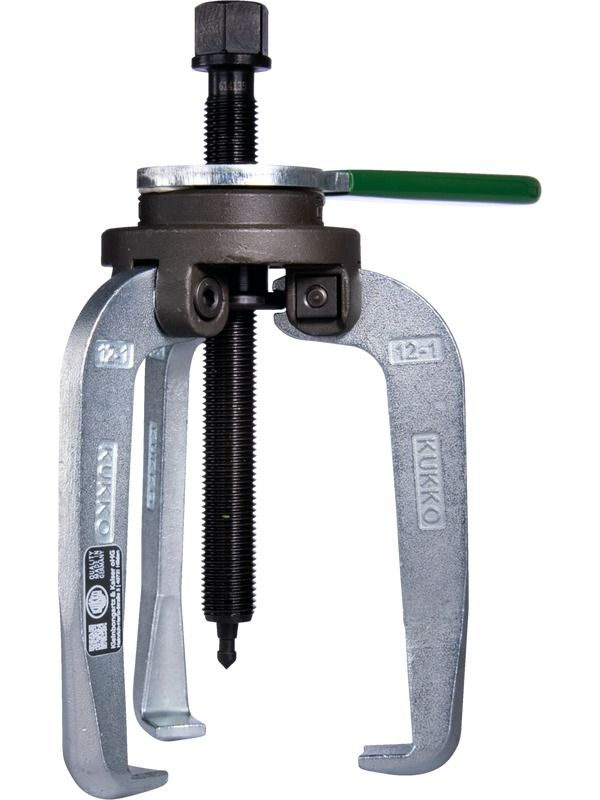

Kukko 3-Armed Alligator Puller w/Fixed Puller Legs & Anti-Slip Protection
OverviewThe 3-armed "Alligator" puller with fixed puller legs and anti-slip protection is used to remove particularly tight bearings, gears and discs in all standard sizes for trades, workshops and industry. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. Tightening the spanner ensures that the puller legs are centred and firmly tightened. This prevents the legs from slipping or moving.
ApplicationFor pulling off particularly tight bearings, gearwheels and pulleys
The alligator transmission guarantees that the puller legs can only be opened and closed by operating the adjusting spanner
The spanner ensures that the puller is held securely in place without the legs jumping off or moving out of position
Self-centring of the legs by tightening the spanner
Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)
For models from size 12-4 upwards, there is one hook support on the inside and one on the outside, so that the puller can be used for both external removal and internal extraction (it can also be used as a mobile press)
Anti-slip guard on the spindle head for safe working with wrench
Spindle riser protects the threading
Total width: 124mm
Total depth: 124mm
Total height: 155mm
Net weight: 1.24kg
Width across flats: 17mm
Span outside pull-off (min): 0mm
Span outside pull-off (max): 100mm
Clamping depth outside pull-off: 100mm
Hook root thickness at the tip (claw thickness): 3mm
Hook base width (claw width): 14mm
Hook base depth usable (claw depth usable): 13mm
Total hook root depth (total claw depth): 25mm
Total claw thickness (claw distance to base surface): 17mm
Max torque (Nm): 180Nm
Material: Tool steel
Scale division: No
