Kukko Puller For Camshaft Sprockets 118-0

Kukko Puller For Camshaft Sprockets

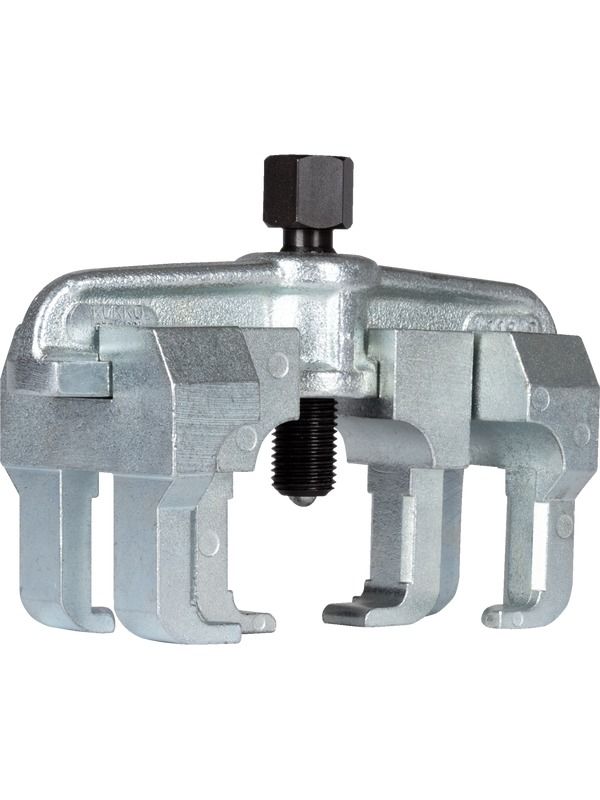

The camshaft sprocket puller with sliding, always parallel puller legs is used to remove spoked camshaft sprockets in the vehicle workshop. Equipped with four special puller legs, the external removal tool guarantees particularly safe, non-destructive removal.

• For pulling off spoke camshaft sprockets

• Special puller arm for ideal adaptation to camshaft sprockets

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

• Total width: 136mm

• Total depth: 60mm

• Total height: 90mm

• Net weight: 1.26kg

• Width across flats: 17mm

• Span outside pull-off (min): 28mm

• Span outside pull-off (max): 115mm

• Clamping depth outside pull-off: 43mm

• Hook root thickness at the tip (claw thickness): 4mm

• Hook base width (claw width): 48mm

• Hook base depth usable (claw depth usable): 11mm

• Total hook root depth (total claw depth): 21mm

• Total claw thickness (claw distance to base surface): 4mm

• Max torque (Nm): 35Nm

• Case material: Tool steel

• Scale division: No
