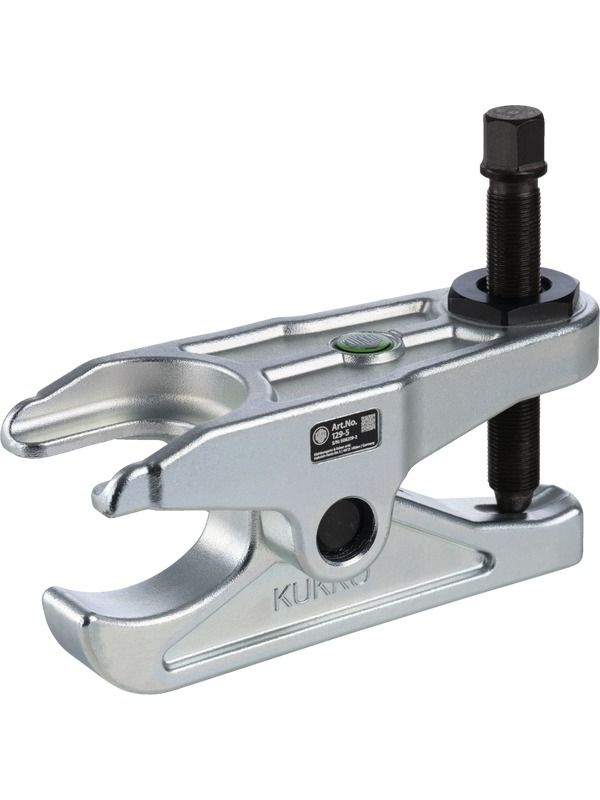

Kukko Ball Joint Ejector For Heavy Trucks 129-5

Kukko Ball Joint Ejector For Heavy Trucks

The Series 129 ball joint extractor for heavy trucks is used to hydraulically extract the ball studs when removing ball joints from push and track rods, especially for medium and heavy trucks, buses and construction vehicles. The 129 series impresses with its wide range of applications. Different versions enable optimum application in every situation.

• For hydraulically pushing out the ball journals when removing ball joints on push rods and track rods, especially for medium and heavy trucks, buses and construction vehicles

• The bolt can be adjusted to flexibly adapt the clamping range

• Specifications

• Total width: 76mm

• Total depth: 201mm

• Total height: 161mm

• Net weight: 4.24kg

• Width across: 19mm

• Max torque Nm: 200Nm

• Material: Tool steel

• Fork thickness at the tip: 5.5mm

• Fork opening (jaw opening): 36mm

• Fork height: 22.5mm

• Level clamping range: 70mm

• Hinge pin diameter: 35-45mm
