Kukko Ball Joint Ejector w/ Lever Transmission Medium/Heavy Trucks Buses 129-4
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

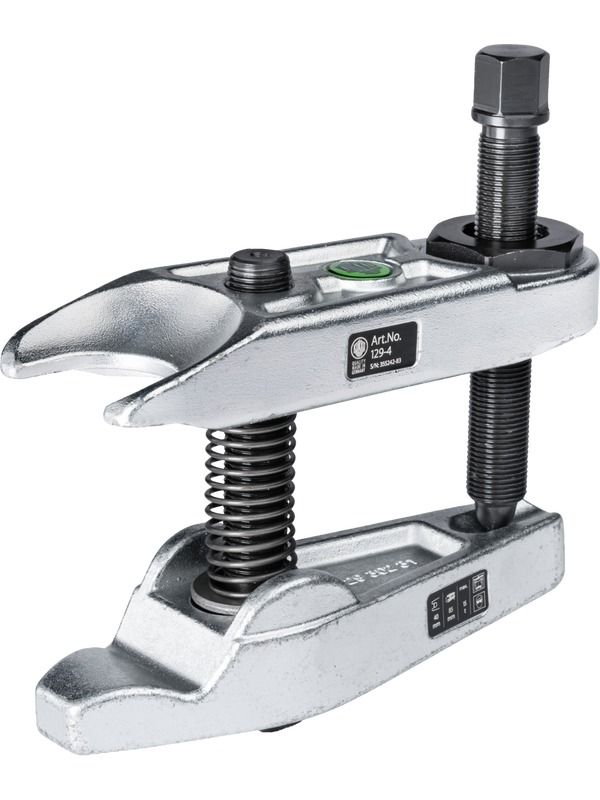

Kukko Ball Joint Ejector w/ Lever Transmission Medium/Heavy Trucks Buses
OverviewThe Series 129 ball joint extractor with lever transmission is used to press out ball studs when removing ball joints and track rod knobs on track rods for medium and heavy trucks, buses and construction vehicles. Thanks to its lever transmission, the ball joint extractor can also apply a lot of force where there is hardly any access space. The 129 series impresses with its wide range of applications. Different versions enable optimum application in every situation.
ApplicationsFor pushing out the ball studs when removing ball joints as well as tie rod knobs on tie rods, for medium and heavy trucks, buses and construction vehicles
Better feel thanks to modern and ergonomic design
Low force required for high extraction performance
The clamping depth can be easily adjusted using a spring mechanism
The bolt can be adjusted to flexibly adapt the clamping range
Total width: 68mm
Total depth: 177mm
Total height: 160mm
Net weight: 3.26kg
Width across flats: 19mm
Max torque Nm: (125Nm)
Material: Tool steel
Fork thickness at the tip: 4.4mm
Fork opening (jaw opening): 40mm
Fork height (jaw height): 28mm
Level clamping range: 85mm
