Kukko Ball Joint Extractor w/ Lever Transmission Cars Vans/Medium Trucks 129-2
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Kukko Ball Joint Extractor w/ Lever Transmission Cars Vans/Medium Trucks

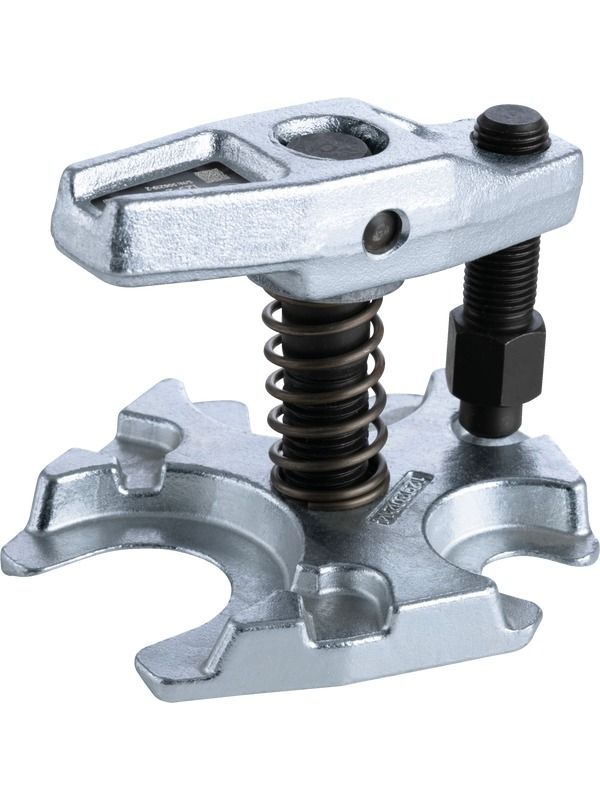

OverviewThe Series 129 ball joint extractor with lever transmission is used universally for cars, vans and medium trucks when removing ball pivots as well as tie rod knobs on track rods when removing ball joints. Thanks to its lever transmission, the ball joint extractor can also apply a lot of force where there is hardly any access space. The 129 series impresses with its wide range of applications. Different versions enable optimum application in every situation.
ApplicationsFor pushing out the ball studs when removing ball joints as well as tie rod knobs on tie rods, universal for cars, vans and medium-sized trucks
The ball joint ejector can be used universally thanks to its three jaw widths
The bolt can be adjusted to flexibly adapt the clamping range
Total width: 105mm
Total depth: 102mm
Total height: 85mm
Net weight: 1.13kg
Width across flats: 17mm
Max torque (Nm): 35Nm
Fork thickness at the tip: 1mm
Fork opening (jaw opening): 16mm
Fork height (jaw height): 15mm
Lever clamping range: 70mm
Fork opening (jaw opening) 3: 32mm
Fork opening (jaw opening) 2: 22mm
Diameter of fork opening set: 16, 22, 32
