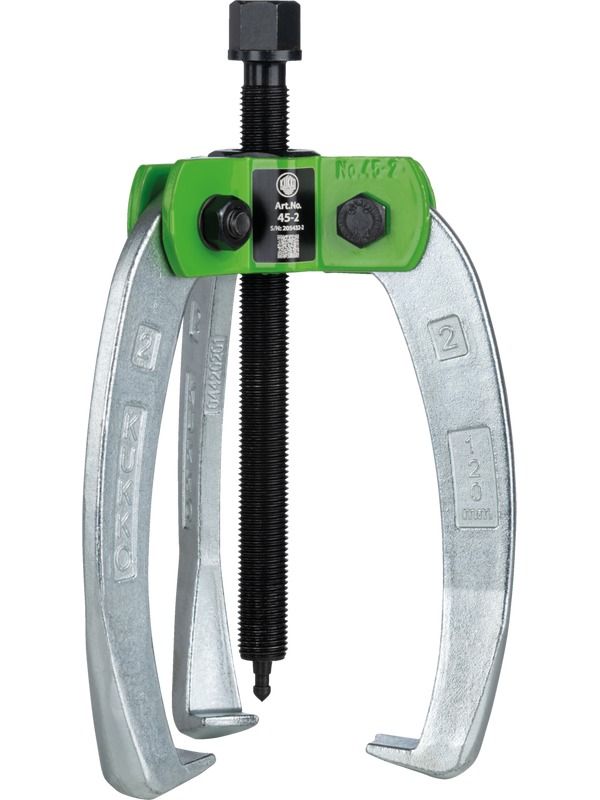

Kukko Handy 3-Arm Industrial Puller w/ Power-Transmitting & Self-Centring 45-2

Kukko Handy 3-Arm Industrial Puller w/ Power-Transmitting & Self-Centring

The handy, 3-armed industrial puller with power-transmitting and self-centring puller legs is used to pull bearings, gears and discs in all standard sizes for trade, workshop and industry. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. When the spindle pressure is built up, the part to be removed is gripped ever more tightly by the interconnected puller arms. The 3-arm design guarantees even load distribution and therefore a particularly secure grip on the part to be removed.

• For pulling off bearings, gear wheels and discs

• Self-centring of the legs by manually tightening the spindle (Autogrip Technology)

• Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)

• 3-jaw design ensures even force distribution and enables greater pulling power

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

• Total width: 156mm

• Total depth: 156mm

• Total height: 181mm

• Net weight: 1.124kg

• Width across flats: 17mm

• Span outside pull-off (min): 0mm

• Span outside pull-off (max): 120mm

• Clamping depth outside pull-off: 120mm

• Hook root thickness at the tip (claw thickness K): 3mm

• Hook base width (claw width J): 17mm

• Hook base depth usable (claw depth usable O): 14mm

• Total hook root depth (total claw depth H): 32mm

• Total claw thickness (L+1mm) (claw distance to base surface): 10mm

• Max Torque (Nm): 120Nm

• Material: Took steel

• Scale Division: No
