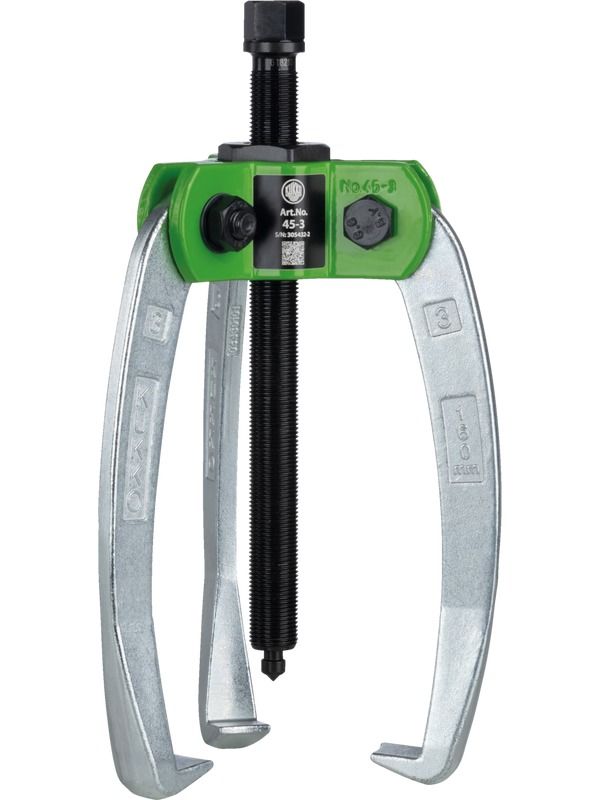

Kukko Handy 3-Arm Industrial Puller w/ Power-Transmitting & Self-Centring 45-3
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Kukko Handy 3-Arm Industrial Puller w/ Power-Transmitting & Self-Centring
OverviewThe handy, 3-armed industrial puller with power-transmitting and self-centring puller legs is used to pull bearings, gears and discs in all standard sizes for trade, workshop and industry. It can be used to remove any component that sits on a shaft and is freely accessible from the outside. When the spindle pressure is built up, the part to be removed is gripped ever more tightly by the interconnected puller arms. The 3-arm design guarantees even load distribution and therefore a particularly secure grip on the part to be removed.
ApplicationFor pulling off bearings, gear wheels and discs
Self-centring of the legs by manually tightening the spindle (Autogrip Technology)
Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)
3-jaw design ensures even force distribution and enables greater pulling power
Anti-slip guard on the spindle head for safe working with wrench
Spindle riser protects the threading
Total width: 198mm
Total depth: 198mm
Total height: 235mm
Net weight: 2.45kg
Width across flats: 19mm
Span outside pull-off (min): 0mm
Span outside pull-off (max): 160mm
Clamping depth outside pull-off: 160mm
Hook root thickness at the tip (claw thickness K): 3.3mm
Hook base width (claw width J): 20mm
Hook base depth usable (claw depth usable O): 17mm
Total hook root depth (total claw depth H): 36mm
Total claw thickness (L+1mm) (claw distance to base surface): 12mm
Max Torque (Nm): 180Nm
Material: Took steel
Scale Division: No
