Kukko Hydraulic 4 Puller Set with Self-Centering Puller Hooks 845-150

Kukko Hydraulic 4 Puller Set with Self-Centering Puller Hooks

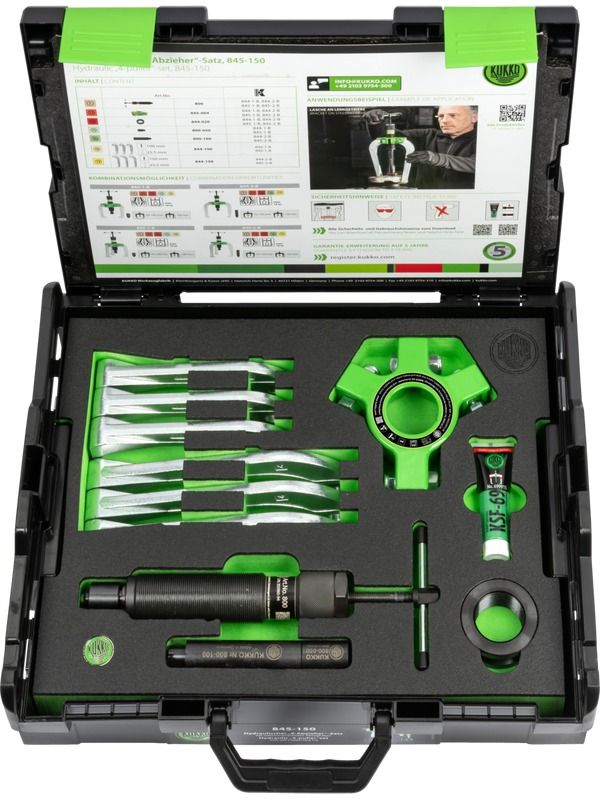

The hydraulic "4 puller" set with self-centring pulling hooks is used for pulling bearings, gears, discs etc. in trade, industry and workshops. The set includes pullers, hydraulic spindle, hooks and 2- and 3-arm combination crossbars, which can be combined to form four different pullers thanks to the easily interchangeable, multi-combinable individual parts.

• For removing bearings, gears, discs etc. in trade, industry and workshops.

• Application-oriented compilation for universal use

• Storage in the box makes it easy to keep track of the completeness of the set

• Pullers of the 800 series use the same, hydraulic spindle and require no further accessories

• For the 800 series, there are numerous individual parts and supplements that are easy to exchange and can be combined in many ways

• The different pullers cover spans from 50-150 mm and therefore suitable pullers are available for most puller situations

• The hydraulics enable high extraction performance with low effort

• The axially working lifting piston does not rotate with the hydraulic spindle

• The extensions supplied extend the clamping depth and thus allow quick adaptation to a wide range of practical requirements

• Total width: 442mm

• Total depth: 357mm

• Total height: 151mm

• Net weight: 9.66kg

• Span outside pull-off (min): 26mm

• Span outside pull-off (max): 150mm

• Max Torque (Nm): 40Nm

• Material: Tool steel

• Max Torque (hydraulic) (Nm): 40Nm

• Load capacity: 25kg

• Case Type: K-L-BOXX-L-136

• Clamping depth (min): 0mm

• Clamping depth (max): 150mm
