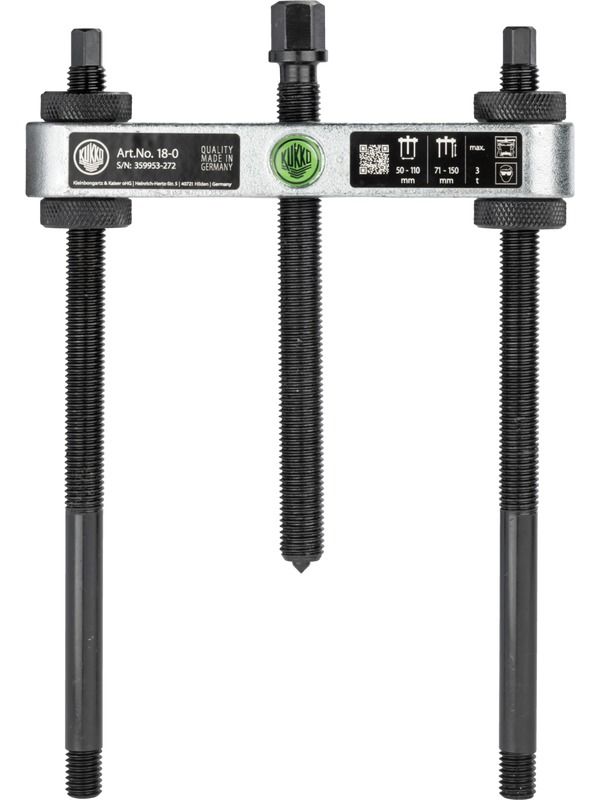

Kukko Puller
OverviewThe Series 18 pullers are used together with the Series 15 and 17 separators to pull off flat or thin-walled parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating-pulling process is able to gently separate these parts before they can be pulled off from the outside.
ApplicationTogether with the separating devices of series 15 and 17 for the removal of flat or thin-walled parts
The screw connection between the separating and extracting device ensures maximum stability during extraction
If the separating jaws are screwed into the tightening device the other way round, the contact surface is enlarged and pulled off more gently
Thanks to its simple design, special separating devices can also be easily created for the 18 series for in-house use
Total width: 144mm
Total depth: 26mm
Net weight: 0.825kg
Width across flats: 13mm
Max torque (Nm): 40Nm
Material: Tool steel
Clamping depth: 150mm
Total length of the spindle: 150mm
Width across flats: 8mm
Mounting thread for separator (nominal dimension): M10
Diameter of the thrust piece: 5mm
Puller span (min-max): 32mm-114mm
Puller span (min): 32mm
Clamping width of puller span (max): 114mm
