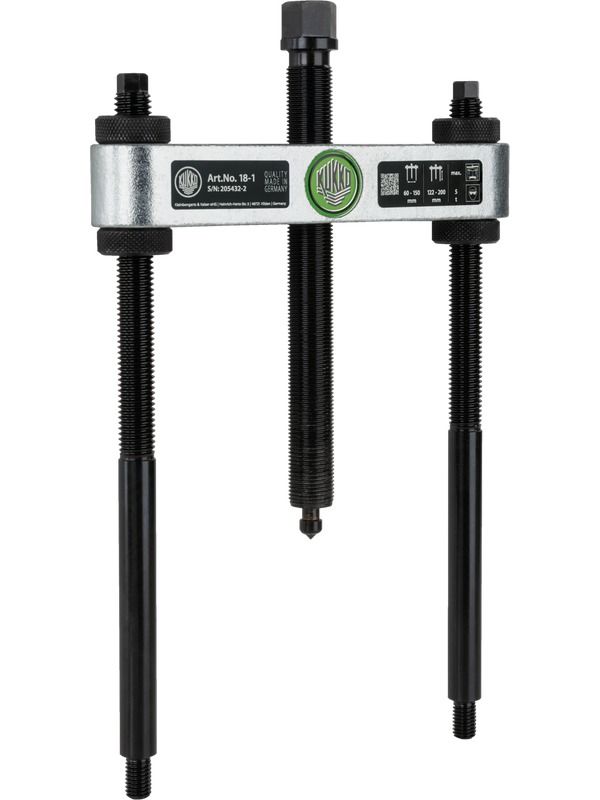

Kukko Puller 18-1

Kukko Puller

The Series 18 pullers are used together with the Series 15 and 17 separators to pull off flat or thin-walled parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating-pulling process is able to gently separate these parts before they can be pulled off from the outside.

• Together with the separating devices of series 15 and 17 for the removal of flat or thin-walled parts

• The screw connection between the separating and extracting device ensures maximum stability during extraction

• If the separating jaws are screwed into the tightening device the other way round, the contact surface is enlarged and pulled off more gently

• Thanks to its simple design, special separating devices can also be easily created for the 18 series for in-house use

• Total width: 182mm

• Total depth: 35mm

• Net weight: 2kg

• Width across flats: 19mm

• Max torque (Nm): 70Nm

• Material: Tool steel

• Clamping depth: 200mm

• Total length of the spindle: 198mm

• Width across flats: 10mm

• Mounting thread for separator (nominal dimension): M10

• Diameter of the thrust piece: 8mm

• Puller span (min-max): 58mm-150mm

• Puller span (min): 58mm

• Clamping width of puller span (max): 150mm
