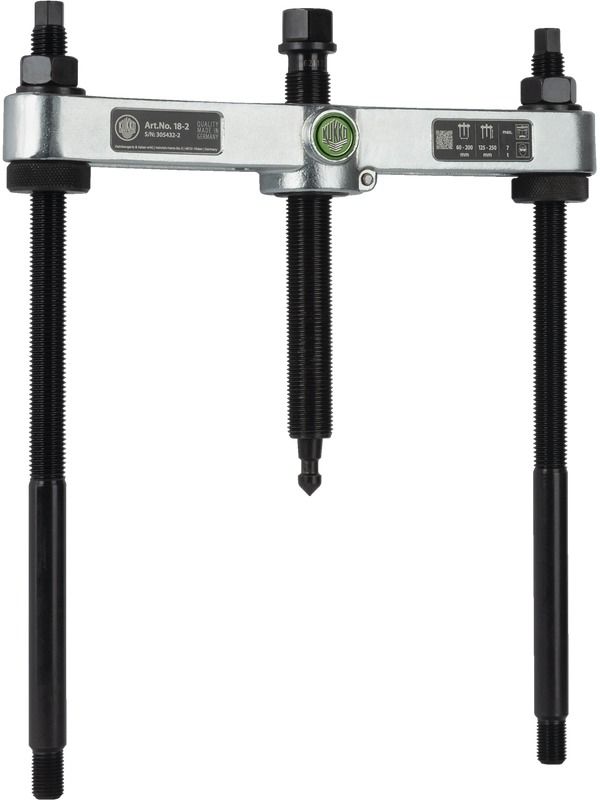

Kukko Puller 18-2

Kukko Puller

The Series 18 pullers are used together with the Series 15 and 17 separators to pull off flat or thin-walled parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating-pulling process is able to gently separate these parts before they can be pulled off from the outside.

• Together with the separating devices of series 15 and 17 for the removal of flat or thin-walled parts

• The screw connection between the separating and extracting device ensures maximum stability during extraction

• If the separating jaws are screwed into the tightening device the other way round, the contact surface is enlarged and pulled off more gently

• Thanks to its simple design, special separating devices can also be easily created for the 18 series for in-house use

• Total width: 282mm

• Total depth: 50mm

• Net weight: 3.245kg

• Width across flats: 22mm

• Width across flats (hydraulic): 12mm

• Max torque (Nm): 120Nm

• Clamping depth: 260mm

• Total length of the spindle: 195mm

• Width across flats: 12mm

• Width across flats tension bolt nut: 24mm

• Width across flats (hydraulic): 32mm

• Total length of the spindle (hydraulic): 420mm

• Mounting thread for separator (nominal dimension): M14x15

• Diameter of the thrust piece: 10mm

• Max torque (hydraulic) (Nm): 12Nm

• Max tractive force (hydraulic): 70mm

• Max tractive force (hydraulic): 7t

• Puller span (min -max): 68mm-244mm

• Puller span (min): 68mm

• Clamping width of puller (max): 244mm
