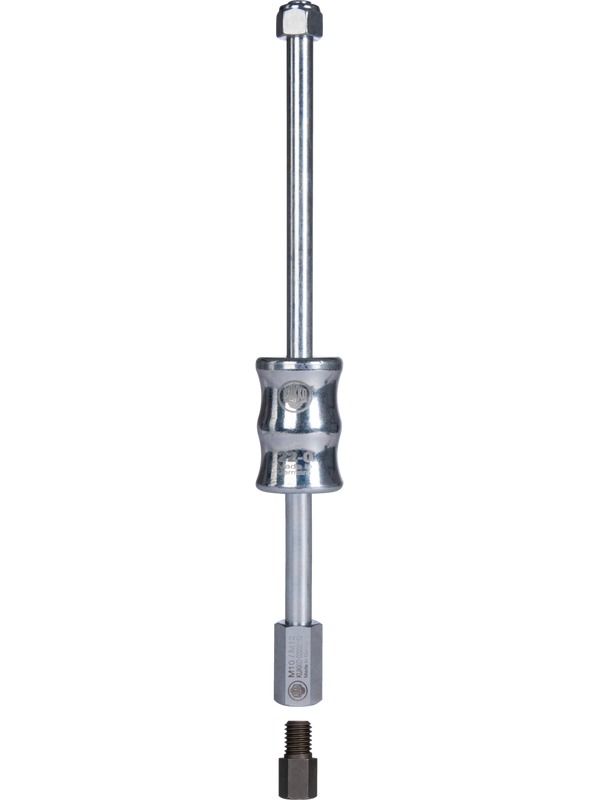

Kukko Sliding Hammer Device with 0.5 kg Impact Weight 22-0-05

Kukko Sliding Hammer Device with 0.5 kg Impact Weight

Series 22-0 slide hammer devices are used together with series 21 internal extractors in trade, industry and workshops. The use of a slide hammer is particularly recommended when there is no support surface or it is too sensitive. The ergonomically shaped, solid slide piece enables the applied force to be optimally transmitted and a strong shock effect to be achieved. This also ensures contact-free and gentle extraction. Sliding hammers are available in various sizes and accessories with impact masses from 500 g to 8 kg for every application.

• Together with internal extractors of the series 21

• The shape of the sliding piece enables a high impact weight of the slide hammer with easy application

• The internal stop point prevents crushing and ensures a safe working process

• If there is not enough space, the impact weight can be turned round

• Net weight: 0.85kg

• Case material: Tool steel

• Width across flats Thread adaptor: 12mm

• Impact distance: 200mm

• Impact mass: 0.5kg

• Internal thread of the thread adaptor (nominal dimension): M7

• Width across flats stop nut: 19mm

• Width across flats connecting nut: 19mm

• Internal thread of the connecting nut (nominal dimension): M10

• Diameter: 40mm

• Length of the slide hammer: 325mm
