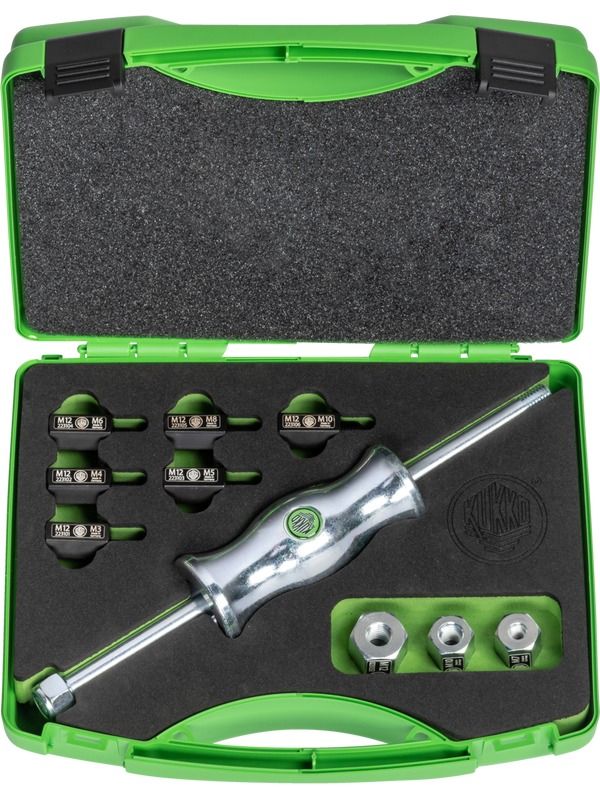

Kukko Sliding Hammer Sets in a Case KS-22-01

Kukko Sliding Hammer Sets in a Case

The 10-piece Slide hammer set in case KS-22-01 is used for extracting bushings and components with threads (dowel pins, feather keys, bolts, etc.) in trade, industry and workshops. The use of a slide hammer is particularly recommended when there is no support surface or it is too sensitive. The ergonomically shaped, solid sliding piece allows the applied force to be optimally transmitted and a strong shock effect to be achieved. This also ensures non-contact and gentle extraction. The thread adapters included in this set can be used for both internal and external threads.

• For extracting bushings as well as components with threads (dowel pins, feather keys, bolts, etc.)

• Application-orientated compilation for universal use

• Storage in the case makes it easy to keep track of the completeness of the set

• The thread can be clearly identified using the dimensions lasered onto the thread adapters

• The included thread adapters can be used for different thread types and sizes

• Total width: 275mm

• Total depth: 230mm

• Total height: 83mm

• Net weight: 2.12kg

• Case material: Tool steel

• Impact distance: 250mm

• Impact mass: 1kg

• Internal thread of the connection nut (nominal dimension): M7, M10, 15-16G

• Mounting thread (nominal dimension): M12

• Material: Kunststoff

• Insert thread (nominal dimension): M3, M4, M5, M6, M8, M10

• Length of the slide hammer: 300mm

• Total width of case: 275mm

• Total case depth: 230mm

• Total case height: 83mm
