Metcal Fume Extraction System Kit BVX-250-KIT
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

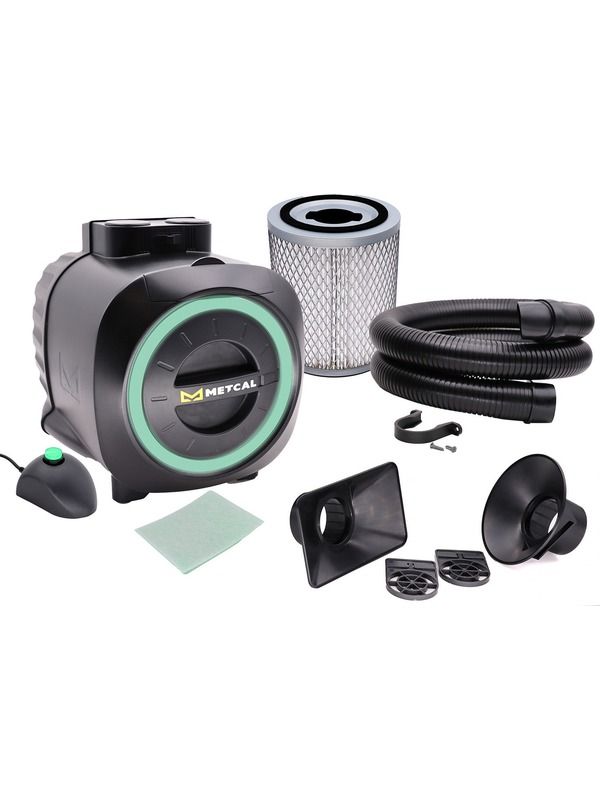

Metcal Fume Extraction System Kit
OverviewThe BVX-250 is a portable, two-station filtration system for removing workplace fumes, smoke, dust, and vapours. With 99.97% efficiency HEPA 13 filtration, 30-second filter changes, and twice the suction power of previous models.
Compatible with previous BVX & Omniflex arms and hoses. Arms/hoses are sold separately.
Features & BenefitsEasy 30-Second Filter Changes
LED Status Ring
2x the Suction of Previous Models
99.97% Efficiency HEPA 13 Filter
Optional Deep Bed Gas Filter (FG-BVX250, sold separately)
Quiet Operation
Three Power Levels
360-degree Rotating/Removable Air Diverter
Communicates with Metcal CV & GT Series Soldering Systems
New Circular & Rectangular Nozzles with Nozzle Filters are available
Compatible with previous BVX & Omniflex Arms and Hoses
Small Footprint for Under or On the Benchtop
Remote Switch Included
BVX-250 Fume Extractor
HEPA 13/Gas Filter
Pre-Filter
Remote switch
BVX-NOZR rectangular nozzle
BVX-NOZC circular nozzle
BVX-ARML arm/hose
| Max. airflow, free blowing | 297 m3/h (175 cfm) |
| Flow rate | 2 x 75 m3/h (45 cfm) |
| Static pressure | 1743 Pa (7" WC) |
| Noise level (approx.) | < 55 dBA (at medium setting) |
| Voltage | 100-240 VAC, 1 phase |
| Frequency | 50/60 Hz |
| Power | 150 Watts |
| Safety compliance | UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV |
| Dimensions W/D/H mm | 268 x 400 x 320 |
| Dimensions W/D/H inches | 10.5" x 16" x 13" |
| Weight (approx.) | 12 lbs. / 5.5 kg |
