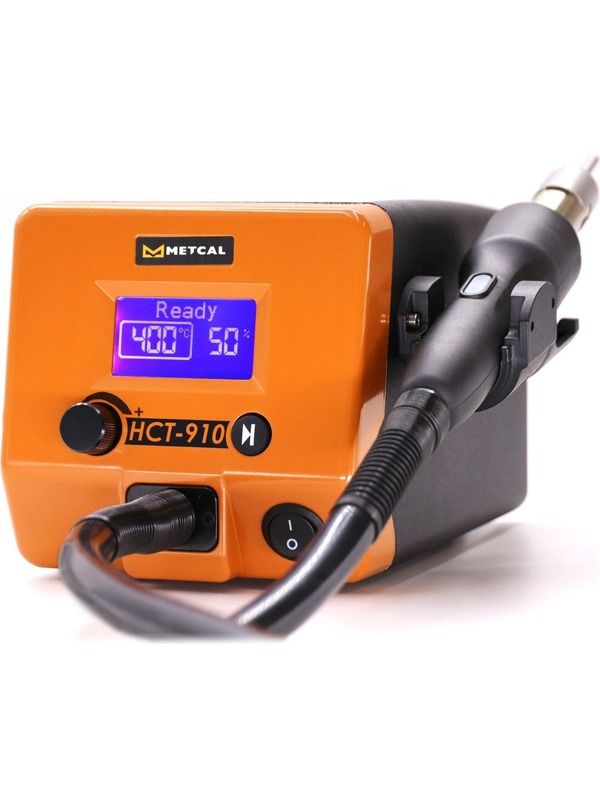

Metcal Hot Air Rework System HCT-910-21
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Metcal Hot Air Rework System
OverviewThe HCT-910 Hot Air Rework System is a high-performance, versatile solution for a wide variety of production and rework challenges. It has a compact, robust design including a digital display and encoder button with real-time temperature and airflow controls. The easy-to-use interface, quick change nozzles, and illuminated start/stop button allow operators to maximize productivity in a safe environment.
Features & BenefitsVersatile 900-watt hot air tool for soldering and desoldering applications
Max temperature of 600 C
Max airflow up to 120 l/m
Digital controls for both airflow & temperature for increased precision
On-the-fly manual mode - quickly toggle between temperature and flowrate
Handpiece start/stop button & status light
Tool-less nozzle removal & replacement
ESD compliant
TUV certified, CE listed, RoHS
HCT-910 Base Unit
5.0 mm Bayonet Nozzle
Handpiece Cradle
Power Cord
| Input Voltage: | 230 VAC, 50 Hz |
| Power: | 900 W |
| Temperature Range: | 50 - 600 C (122 - 1112 F) |
| Temperature Accuracy: | +- 30 C (54 F) |
| Airflow: | At 300 C, 5 - 120 l/min (0.2 - 4.2 cfm) |
| Air Pump Type: | Blower |
| Hose Length (Panel-Handpiece): | 1.2 m (3.9 ft) |
| Noise Level: | < 46 dB (A) |
| Surface Resistivity: | Unit: 105 - 106 Hand-Piece & Tube: 107 - 1011 |
| Dimensions (W x D x H): | 21 x 14 x 14 cm (8.3 x 5.5 x 5.5 in) |
| Weight: | 2 kg (4.4 lb) |
| Pollution Degree Category: | II |
| Storage Temperature: | 0 - 60 C (32 - 140 F) |
| Certifications/Markings: | cTUVus, CE, RoHS |
| Warranty: | 1 Year |
