RTS 10in High Stall Torque Converter Flexplate Kit 3200-3600 850HP TC-2055-K
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

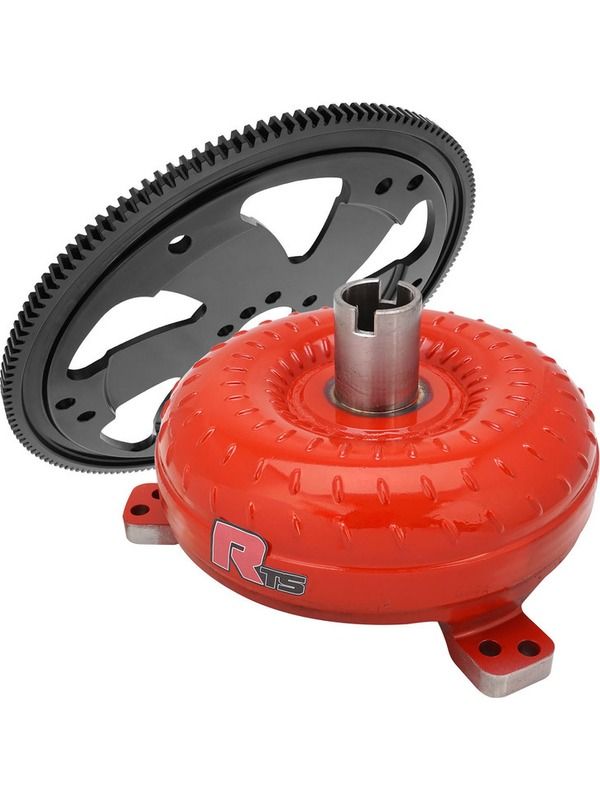

RTS 10in High Stall Torque Converter Flexplate Kit 3200-3600 850HP
Launch With RTS Converter and Flexplate Packages and SavePackage Includes:
RTS Serious Stall ConvertersRTS high stall torque converters are designed for serious-minded performance enthusiasts and offer additional strength and durability. The higher stall speeds of these converters will launch the car in a higher RPM range where more torque is readily available, resulting in quicker acceleration. They're available for a variety of transmission makes and models. They are also available in a custom build model to suit any performance high horsepower application.
Click here for more details on our custom built torque converters.Features
- Built using state-of-the-art tools and equipment
- Billet Cover
- Includes NEW components
- Welded internal hub
- Welded fins on turbine and impeller
- Welded pilot
- Chromoly Flanged hub, acts as a internal Anti Balloon plate
- All critical surfaces are resurfaced by skilled craftsman
- Pressure tested to ensure a full and complete weld
- Electronically balanced for precision accuracy
- Made in the USA!
Stall: 3200-3600
Series: Bandit Billet Plus rated up to 850hp
Transmission Type: 700R4, 4L60 and 4L60E ( Non LS )
Size: 10"
Turbine: 30 spline
Bolt Circle: 10.75" and 11"
Pilot Size: 1.703
Hub Style: Slotted
Mount: Billet
RTS' full billet steel flexplates are for the serious racers. They are machined out of cold-drawn AISI 1045 carbon steel and come with a stealth black oxidised plating for added durability. Their strength to weight ratio is incredible compared to their 2-piece counterparts which enables them to handle extreme engine builds in excess of 1000 HP. They offer heat-treated, precision machined gear teeth for added strength and feature low runout values to produce an incredibly durable flexplate. They all come with a SFI 29.2 explosion-proof rating.
Specifications:- Concentric machined to .005".
- One piece design - 100% machined.
- Chamfered gear tooth provides better engagement.
- Fits GM LS engines with 6 bolt crank.
- 168 tooth ring gear.
- Converter pattern 1: 3 holes 7/16" diameter on 10.75" bolt circle.
- Converter pattern 2: 3 holes 7/16" diameter on 11.50" bolt circle.
- Converter pattern 3: 3 holes 7/16" diameter on 11.06'' bolt circle.
- Will not suit 8-bolt crank (LSA)
