Ruko Step Drills HSS Spiral Fluted with Split Point No. 8
Ruko Step Drill 0.48- 10.65mm 5 steps

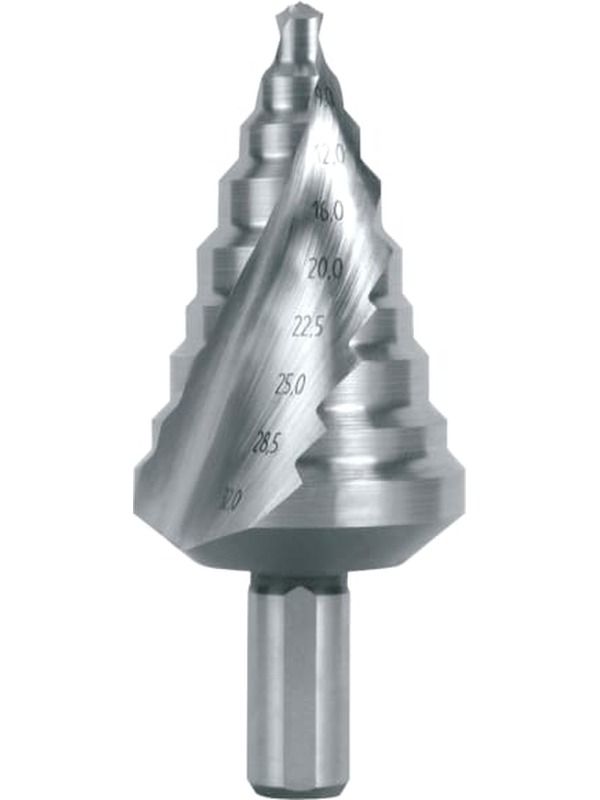

Ruko Step Drill HSS Spiral Fluted with Split Point No. 12 101096
MPN: 101096
|
RPI: 3265353
or 4 interest-free payments of
$31.68
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
4007140043122
MPN
101096
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Coating
uncoated
Cutting Direction
right hand cutting
Drilling Range
6.0 - 32.0mm
Length
76.0mm
Material
HSS
Number of Cutting Edges
2
Number of Steps
12
Point Angle
118 degrees
Shaft Diameter
10.00mm
Shaft
3-way clamping surface
Size no. 12 Drilling range
6,0 / 9,0 / 12,0 / 16,0 / 20,0 / 22,5 / 25,0 / 28,5 / 32,0mm
Size
12
Step Angle
90 degrees
Tolerance
work's specification
Ruko Step Drill HSS Spiral Fluted with Split Point No. 12 Overview
The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
Application
Main Application:
Steel 900 N/mm
Aluminium
Brass
Plastics
Other Application:
Specifications
Size: 12
Material: HSS
Shaft: 3-way clamping surface
Coating: uncoated
Shaft Diameter: 10.00 mm
Size: 12
Drilling Range: 6.0 - 32.0 mm
Tolerance: work's specification
Point Angle: 118
Cutting Direction: right hand cutting
Number of Cutting Edges: 2
Number of Steps: 12
Step Angle: 90
Length: 76.0 mm
Net Weight: 0.158kg
Size no. 12 Drilling range: 6,0 / 9,0 / 12,0 / 16,0 / 20,0 / 22,5 / 25,0 / 28,5 / 32,0 mm
