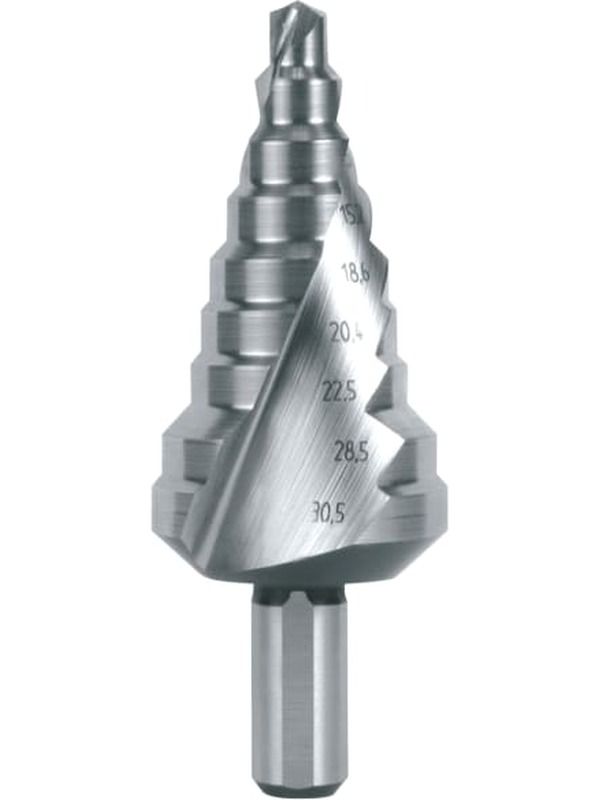

Ruko Step Drills HSS Spiral Fluted with Split Point No. 8 101098

Ruko Step Drills HSS Spiral Fluted with Split Point No. 8

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Steel 900 N/mm

Aluminium

Brass

Plastics

Material: HSS

Shaft: 3-way clamping surface

Coating: uncoated

Shaft Diameter: 10.00 mm

Size: 8

Drilling Range: 6.0 - 30.5 mm

Tolerance: work's specification

Point Angle: 118

Cutting Direction: right hand cutting

Number of Cutting Edges: 2

Number of Steps: 9

Step Angle: 90

Length: 80.0 mm

Size no. 8 Drilling range: 6,0 / 9,0 / 12,5 (PG7) / 15,2 (PG9) / 18,6 (PG11) / 20,4 (PG13,5) / 22,5 (PG16) / 28,3 (PG21) / 30,5 mm
