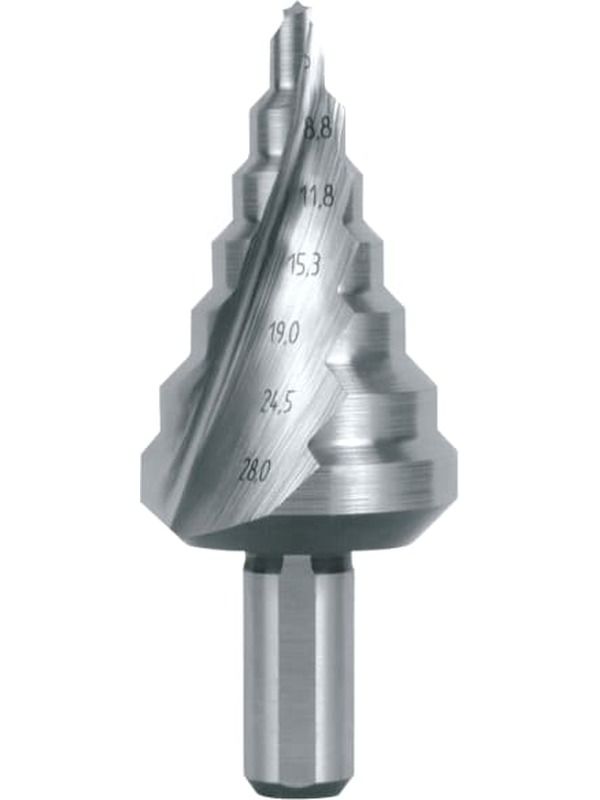

Ruko Step Drills HSS Spiral Fluted with Split Point No. 3 101053

Ruko Step Drills HSS Spiral Fluted with Split Point No. 3

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Steel 900 N/mm

Aluminium

Brass

Plastics

Material: HSS

Shaft: 3-way clamping surface

Coating: uncoated

Shaft Diameter: 10.00 mm

Size: 3

Drilling Range: 6.0 - 38.0 mm

Tolerance: work's specification

Point Angle: 118

Cutting Direction: right hand cutting

Number of Cutting Edges: 2

Number of Steps: 12

Step Angle: 90

Length: 100.0 mm

Size no. 3 Drilling range: 6,0 / 9,0 / 13,0 / 16,0 / 19,0 / 21,0 / 23,0 / 26,0 / 29,0 / 32,0 / 35,0 / 38,0 mm
