Ruko Step Drills HSSe-Co 5 Spiral Fluted with Split Point No. 0/9 101050-9E
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

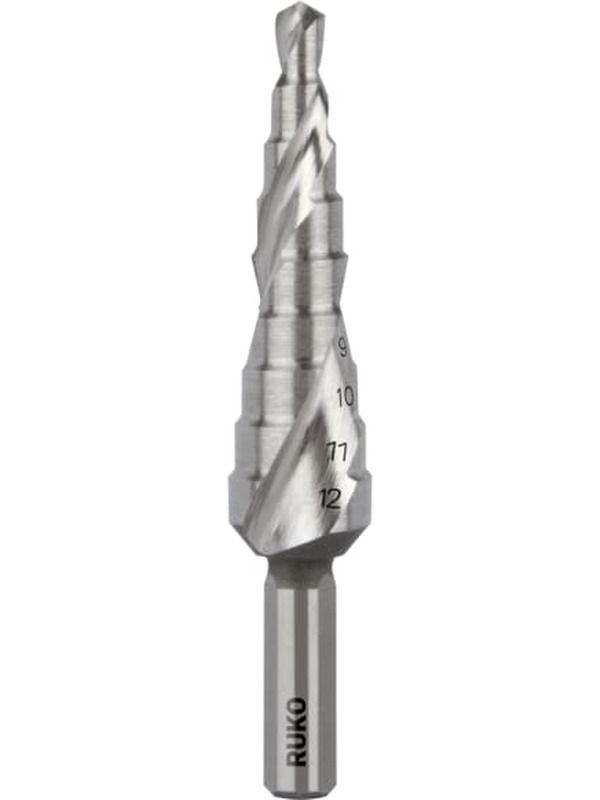

Ruko Step Drills HSSe-Co 5 Spiral Fluted with Split Point No. 0/9
OverviewThe CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
ApplicationSteel 900 N/mm
Steel 1100 N/mm
Stainless steel
Aluminium
Brass
Plastics
SpecificationsMaterial: HSS
Shaft: 3-way clamping surface
Coating: uncoated
Shaft Diameter: 6.00 mm
Size: 0/9
Drilling Range: 4.0 - 12.0 mm
Tolerance: work's specification
Point Angle: 118
Cutting Direction: right hand cutting
Number of Cutting Edges: 2
Number of Steps: 9
Step Angle: 90
Length: 65.0 mm
Size no. 0/9 Drilling range: 4,0 / 5,0 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 mm
