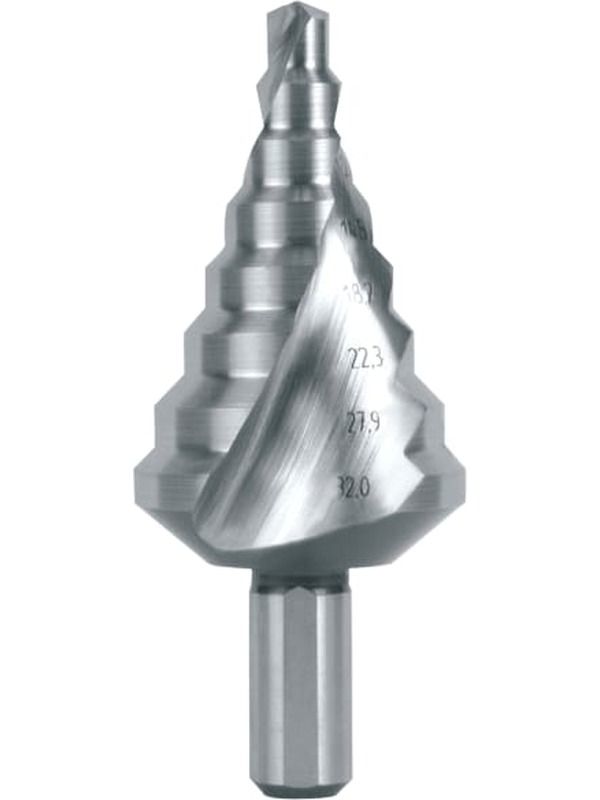

Ruko Step Drills HSS Spiral Fluted with Split Point No. 6
OverviewThe CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
ApplicationSteel 900 N/mm
Aluminium
Brass
Plastics
SpecificationsMaterial: HSS
Shaft: 3-way clamping surface
Coating: uncoated
Shaft Diameter: 10.00 mm
Size: 6
Drilling Range: 6.0 - 32.0 mm
Tolerance: work's specification
Point Angle: 118
Cutting Direction: right hand cutting
Number of Cutting Edges: 2
Number of Steps: 8
Step Angle: 90
Length: 75.0 mm
Size no. 6 Drilling range: 6,0 / 9,0 / 11,2 (R1/8) / 14,5 (R1/4) / 18,2 (R3/8) / 22,3 (R1/2) / 27,9 (R3/4) / 32,0 mm
