Ruko Step Drills HSS Spiral Fluted with Split Point No. 7 101058
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

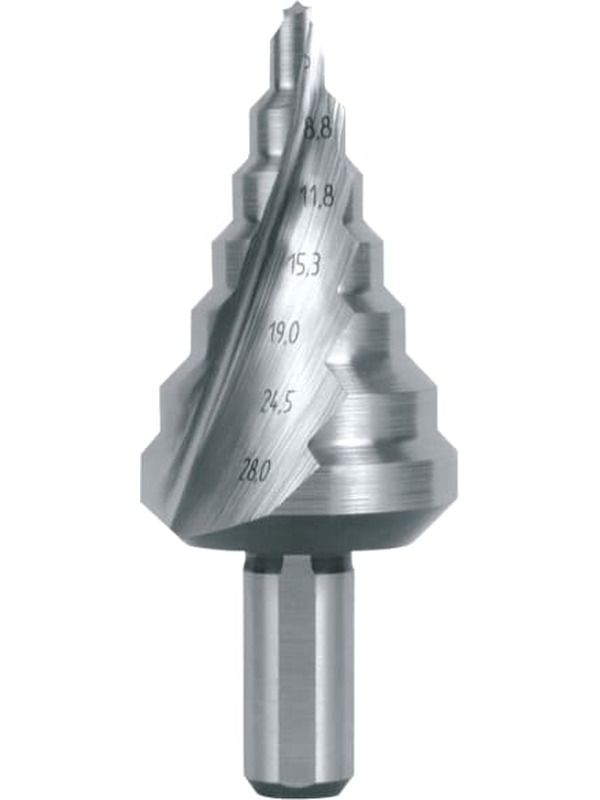

Ruko Step Drills HSS Spiral Fluted with Split Point No. 7
OverviewThe CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
ApplicationSteel 900 N/mm
Aluminium
Brass
Plastics
SpecificationsMaterial: HSS
Shaft: 3-way clamping surface
Coating: uncoated
Shaft Diameter: 10.00 mm
Size: 7
Drilling Range: 5.0 - 28.0 mm
Tolerance: work's specification
Point Angle: 118
Cutting Direction: right hand cutting
Number of Cutting Edges: 2
Number of Steps: 7
Step Angle: 90
Length: 69.0 mm
Size no. 7 Drilling range: 5,0 / 8,8 (G1/8) / 11,8 (G1/4) / 15,3 (G3/8) / 19,0 (G1/2) / 24,5 (G3/4) / 28,0 mm
