Tempo Communications Netcat Pro 2 Kit NC-520
MPN: NC-520
|
RPI: 3269387
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Tempo Communications Netcat Pro 2 Kit

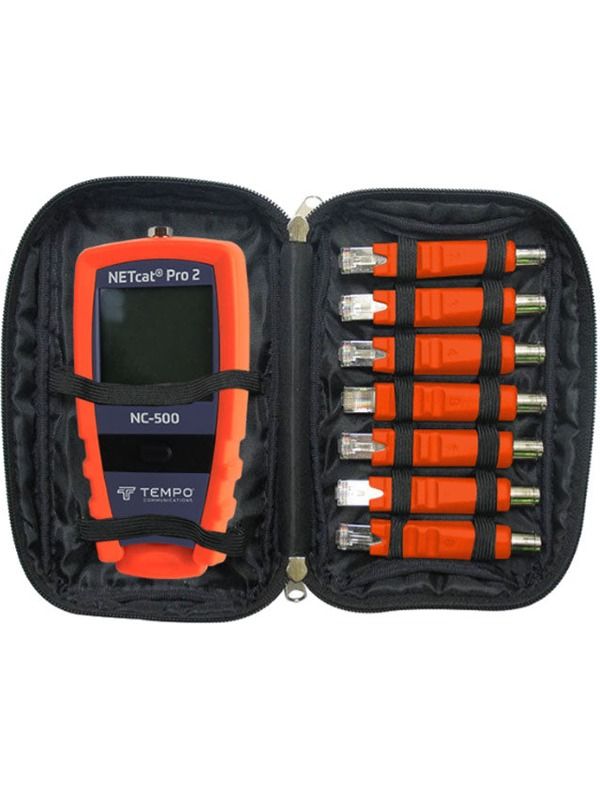

OverviewThe NC-520 from Tempo is the complete NETcat Pro 2 kit that includes everything an IT technician should need to check LAN cables from source to destination: the main NETcat Pro unit plus the accessory set with an additional seven ID units and a carry case for everything with space to spare.
FeaturesThe Netcat Pro 2 main unit with stylus
Removable remote jack and patch lead test and Id unit
Twisted pair (modular RJ45 coax(F) and alligator clip test cords
Seven additional remote jack test and ID units, RJ45 and F (male)
Carrying case to hold additional remote test ID units and content of NC-500 main kit
| Application | Test and Troubleshoot Telephone, Data And Coax Wiring |
| Backlight | White LED |
| Battery | 9 V Alkaline Battery (PP3) (Not Included) |
| Buttons | LCD Touch-Screen, Single Momentary Contact Push Button |
| Display | 128 x 128 pixel LCD, 3" 78mm diagonal |
| Interface Connections | RJ45 Shielded Jacks F-Type Threaded Female Coaxial Connectors |
| Remote Identifier | 2,000 ft. (609.6 meters) maximum distance |
| Resolution | 1 ft, 0.1 m |
| TDR Calibration |
|
| TDR Range | 0 - 2000 ft (600 m) |
| Weight | 0.45 lb. (200 g) |
| Wiremap | 358 ft. (100 meters) maximum distance |
| Operating Temperature | 0C to 50C |
| Storage Temperature | -20C to 70C |
| Accuracy | +-2% (to open) +-4% (to short or ID unit) or 2 ft (0.6 m) whichever is greater. |
| Dimensions | 3.3" x 1.4" x 6.7" (8.5 cm x 3.5 cm x 17 cm) |
| Includes |
|
| Carry Case | Tough polyester outer, fine lining with elastic retaining loops, pocket for manual. 9" x 5.5" x 2.5" (23 x 14 x 6 cm) |
| Office ID Remotes | 3.8" (95 mm) long with RJ45 and push-on F connectors |
