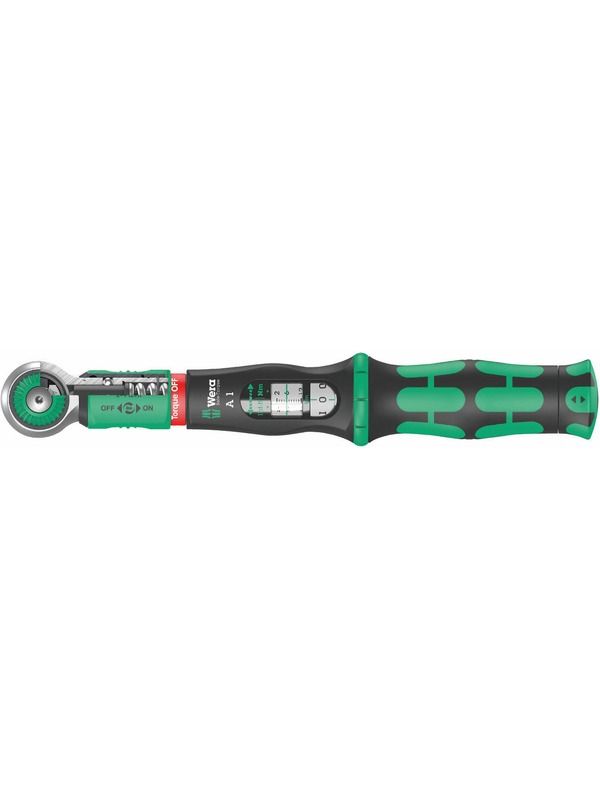

Wera Safe-Torque A 1 Torque Wrench with 1/4in Square Head Drive 2-12Nm
OverviewTorque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value: The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. With Torque Lock function for use as a standard ratchet without torque function. Max. breaking torque of the 1/4" square head as per DIN 3122. The return angle of only 5 allows the ratchet to be used even in confined spaces and therefore also for applications with angles of rotation.
FeaturesSlip-over release mechanism - the set torque can never be overtightened
Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high
loosening moments and for applications with defined angles of rotation
For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
After the target torque has been reached, the release angle is only 30
The fine toothing with 72 teeth allows for a low return angle of 5
1/4" square head drive with socket locking
Mounting Size: 1/4"
Main Scale Graduation: 0.1Nm
Main Scale Measuring Range: 2-12Nm
Subscale Measuring Range: 2-9 lbf. ft
Torque Wrench Length: 244mm
Handle Length: 94mm
Clock Diameter: 38.5mm
Head Diameter: 31.6mm
